Code | B1(mm) | B2(mm) | B3(mm) | B4(mm) | D1(mm) | D2(mm) | L(mm) |
---|---|---|---|---|---|---|---|
PCG-01 | 90 | 90 | 67 | 67 | 66 | 11 | 140 |
PCG-02 | 115 | 125 | 50 | 95 | 97 | 15 | 150 |

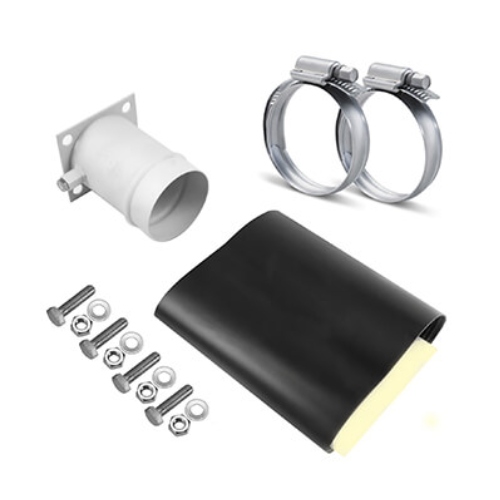

These tubular PCA glands provide an effective moisture seal around the cable sheath and earth the cable armour wires. The gland fixings are made to match the stud spacings. Suitable for three-core (3core) SWA cables up to 36kV. Supplied with integral earthing facility, heat shrink tube and worm drive clips, Nuts & Bolts.
Material: Galvanised MS
Code | B1(mm) | B2(mm) | B3(mm) | B4(mm) | D1(mm) | D2(mm) | L(mm) |
---|---|---|---|---|---|---|---|
PCG-01 | 90 | 90 | 67 | 67 | 66 | 11 | 140 |
PCG-02 | 115 | 125 | 50 | 95 | 97 | 15 | 150 |
