Typical Application: LV, MV & HV Cables

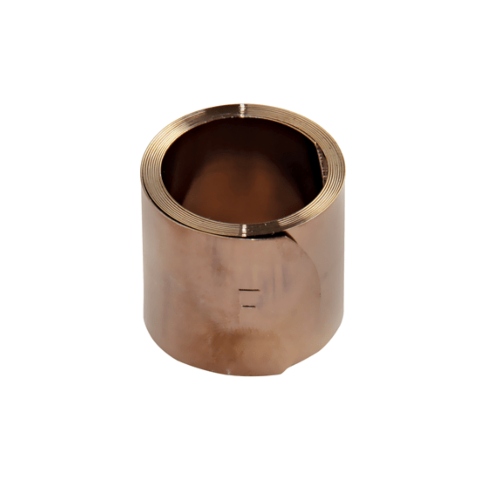

Constant Force Springs are a range of solderless connections for use on lead or aluminium sheaths and copper screened cables.
These springs are easily applied by rolling onto the sheath connections, whereupon it continues to exert a constant pressure. The spring helps in improving connections with the earthing or grounding on Lead and Aluminium cable sheaths, cable screening tapes or wires and steel or aluminium armour wired cables.
Material: SS/High carbon steel
| Product Designation |
Width (mm) | Diameter (mm) | Length (mm) |
|---|---|---|---|
| PCFS-1 | 13 | 10 | 280 |
| PCFS-2 | 13 | 14 | 400 |
| PCFS-3 | 13 | 20 | 570 |
| PCFS-4 | 13 | 40 | 850 |
| PCFS-5 | 25 | 14 | 570 |
| PCFS-6 | 25 | 22 | 700 |
| PCFS-7 | 25 | 30 | 950 |
| PCFS-8 | 30 | 38 | 1100 |
| PCFS-9 | 30 | 38 | 1350 |
| PCFS-10 | 13 | 10 | 400 |
| PCFS-11 | 30 | 45 | 1350 |
| PCFS-12 | 25 | 25 | 850 |
| PCFS-13 | 25 | 19 | 650 |
| PCFS-14 | 30 | 70 | 1500 |
| Diameter | 10, 14, 19, 20, 22, 25, 30, 38, 40, 45, 70 |
|---|---|
| Length | 280, 400, 570, 650, 700, 850, 950, 1100, 1350, 1500 |
