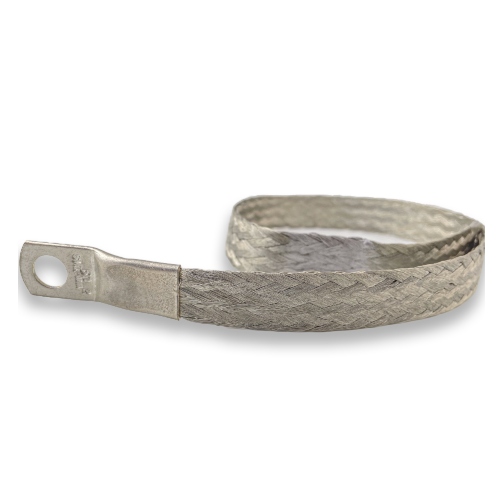

Copper Braid with Solder Blocks

The copper braid serves a crucial role as the grounding lead in joints and terminations, ensuring effective electrical conductivity and safety. The copper braid, featuring a solder block to prevent moisture ingress, stands out as a resilient solution for cable joints and terminations. This innovative design element adds an extra layer of protection, safeguarding against the detrimental effects of moisture, thus ensuring prolonged durability and reliability in challenging environmental conditions. Crafted from high-quality tinned copper wires, this essential component exhibits superior performance in diverse applications. Specifically designed for Low Voltage (LV) and Medium Voltage (MV) cable joints and terminations, the tinned copper braid guarantees reliable electrical connections, minimizing resistance and enhancing overall system integrity. Its robust construction and conductivity make it an indispensable choice for ensuring the secure and efficient functioning of electrical networks, contributing to the seamless transmission of power across various settings.

Categories: , , Tag:

Enquiry about Copper Braid with Solder Blocks

code Min. Cross-Section
(mm2)		 L1(mm)±10 mm L2(mm)±10 mm B(mm)±10% Lug(mm2)
PCBSB-PS-003-10-500 10 500 60 14 25
PCBSB-PS-003-16-300 16 300 60 20 50
PCBSB-PS-003-16-400 16 400 60 20 50
PCBSB-PS-003-16-500 16 500 60 20 50
PCBSB-PS-003-16-1500 16 1500 60 20 50
PCBSB-PS-003-25-300 25 300 60 22 70
PCBSB-PS-003-25-500 25 500 60 22 70
PCBSB-PS-003-25-500-A 25 500 130 22 70
PCBSB-PS-003-25-750 25 750 60 22 70
PCBSB-PS-003-25-600 25 600 60 22 70
PCBSB-PS-003-25-1500 25 1500 60 22 70
PCBSB-PS-003-35-300 35 300 90 25 70
PCBSB-PS-003-35-500 35 500 90 25 70
PCBSB-PS-003-35-750 35 750 90 25 70
PCBSB-PS-003-35-1000 35 1000 90 25 70
PCBSB-PS-003-50-500 50 500 90 33 95
PCBSB-PS-003-50-1000 50 1000 90 33 95
PCBSB-PS-003-70-500 70 500 100 40 120
PCBSB-PS-003-70-1000 70 1000 100 40 120
PCBSB-PS-003-70-1500 70 1500 100 40 120
PCBSB-PS-003-120-500 120 500 105 60 150

Customised sizes available as per the requirements of customer.
