Heat Shrink 3 Core MV Breakout

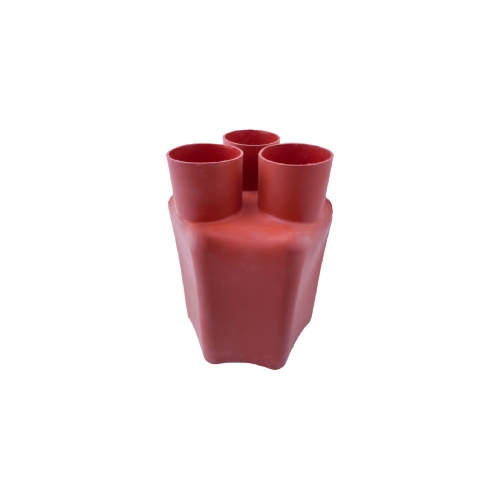

The PHSSC-3-MV, Heat Shrink Spreader Cap (also known as Breakout), provides a strong and permanent environmental seal to the crutch of 3-core PVC/XLPE and PILC cables up to 36 kV. Manufactured from high- quality non-tracking cross-linked Polyolefin material, these breakouts offer exceptional insulation and reliability. Factory applied with internally coated hot melt adhesive, they ensure a durable and reliable seal. They effectively shield cable joints and terminations from water entry, reinforcing protection in demanding high-voltage environments.

Typical Application: MV Cable Joints & Terminations

Categories: ,

Enquiry about Heat Shrink 3 Core MV Breakout



Code D d P F Tb Tf
E S E S E S E S S S
min max min max min max min max ±10% ±10%
PHSSC-3-MV-65/23-27/9 65 23 27 9 175 185 50 55 2.5 1.5
PHSSC-3-MV-90/31-31/12 90 31 31 12 205 215 60 63 2.5 2.0
PHSSC-3-MV-105/32-45/12 105 32 45 12 195 205 60 63 2.5 2.0
PHSSC-3-MV-112/43-55/19 112 43 55 19 215 220 65 65 2.5 2.5
PHSSC-3-MV-125/48-46/21 125 48 46 21 235 240 65 65 2.5 2.5
PHSSC-3-MV-130/53-63/23 130 53 63 23 235 240 78 83 2.5 2.5
PHSSC-3-MV-140/56-68/28 140 56 68 28 215 260 80 95 3.5 3.9
PHSSC-3-MV-160/56-58/28 160 56 58 28 225 270 65 65 3.5 3.9



All dimensions are in mm       E = Expanded/Supplied       S = Recovered
