Typical Application: MV & HV Cable terminations

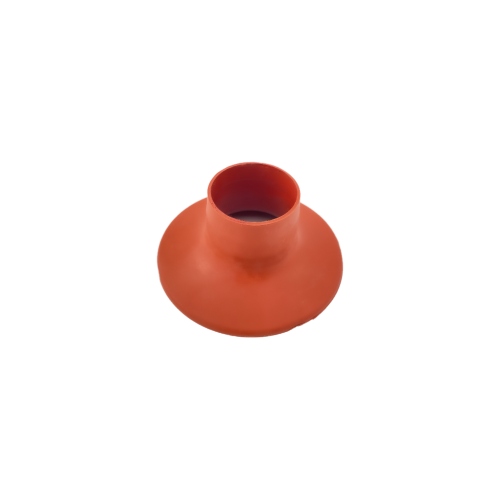

In areas of extreme environmental conditions and high electrical stress, the antitracking skirts provide Extra creepage over the Antitracking tubing. The antitracking sealant provides a moisture proof environmental seal to the substrate.
The shed is normally used in Cable Terminations for voltages > 1 kV.
It is available in various sizes, generally expanded in the ratio 2.5:1 to make it range taking.
Material: Thermoplastic co-polymer material, electrically insulating, non-tracking, erosion and UV-resistant.
| Product Designation |
Size (mm) |
Diameter of Rainshed (mm) | Height of Rainshed(mm) | Thickness of Rainshed(mm) | Area of Rainshed |
|---|---|---|---|---|---|
| PHSRS-1 | 25/8 | 30 | 32 | 1.0 | 70 |
| PHSRS-2 | 30/13 | 40 | 37 | 1.5 | 87 |
| PHSRS-3 | 45/21 | 55 | 37 | 1.5 | 118 |
| PHSRS-4 | 55/27 | 80 | 43 | 2.0 | 140 |
| PHSRS-5 | 120/35 | 80 | 60 | 2.5 | 230 |
| Size | 25/8, 30/13, 45/21, 55/27, 120/35 |
|---|
