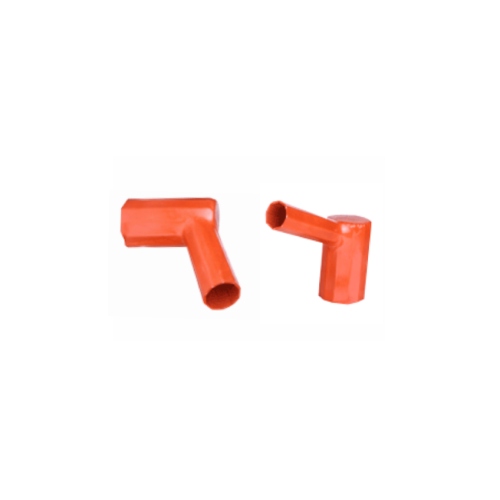

Heat Shrink Right Angle Boot

PCA Technologies’ Heat Shrink Right Angle Boots provide insulation to the bushings in cable termination boxes, especially in situations where the clearance between phases or between phase and earth is less than the standard air clearance. These boots offer essential protection against flash-over in conditions of high humidity, rodent infestations, and surge impulses.


These boots are made from premium cross-linked polyolefin material that is non-tracking. Additionally, The boots are internally coated with a hot melt adhesive. They provide excellent insulation and weather resistant properties

Code D d P R T E Φ
E R E R R R R R Degree
min max min max min min ±20% min ±5%
PHSRAB-1 80 35 38 16 160 130 4.0 25 105
PHSRAB-2 80 35 50 25 170 140 4.5 28 105
PHSRAB-2A 95 35 70 25 170 140 4.5 28 105
PHSRAB-3 145 70 70 34 170 150 4.5 25 105

dimensions are in mm           E = Expanded/Supplied       R = Recovered
