Description
Product Designation |
Width (mm) | Diameter min. (mm) | Diameter max. (mm) |
---|---|---|---|
PJC-1 | 12.5 | 13 | 32 |
PJC-2 | 12.5 | 25 | 50 |
PJC-3 | 12.5 | 25 | 65 |
PJC-4 | 12.5 | 50 | 90 |
PJC-5 | 12.5 | 80 | 120 |
PJC-6 | 12.5 | 90 | 150 |
PJC-7 | 12.5 | 100 | 170 |
Typical Application: LV, MV & HV Cables

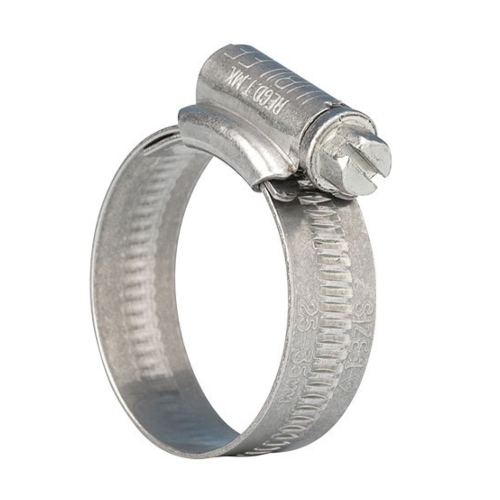

The clamp has a band that is continuously threaded enabling extra flexibility when adjusting the clip to the correct size. The smooth inside profile of the band and rolled edges give protection for all types of Cable Armour / Earthing connections. Their corrosion resistance enables their use in applications where higher corrosion resistance is required.
Material: 304 Stainless steel
Product Designation |
Width (mm) | Diameter min. (mm) | Diameter max. (mm) |
---|---|---|---|
PJC-1 | 12.5 | 13 | 32 |
PJC-2 | 12.5 | 25 | 50 |
PJC-3 | 12.5 | 25 | 65 |
PJC-4 | 12.5 | 50 | 90 |
PJC-5 | 12.5 | 80 | 120 |
PJC-6 | 12.5 | 90 | 150 |
PJC-7 | 12.5 | 100 | 170 |
Diameter Range (mm) | 13-32, 25-50, 25-65, 50-90, 80-120, 90-150, 100-170 |
---|
