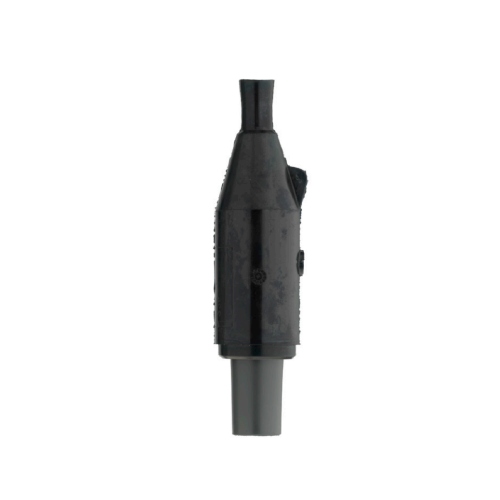

Nexans Euromold 151SP Straight Plug

Interface A (for up to 24 kV, 200 A)

Nexans Euromold 151SP Straight Plug is a separable straight plug designed to connect polymeric insulated cable to cable. Mates with the elbow, straight and branch joint connectors..

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)


Technical Characteristics –

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each straight plug is tested for AC withstand and partial discharge prior to leaving the factory.

Design –

Separable connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type A interface as described by CENELEC EN 50180 and 50181.
  5. Conductor contact.
Separable Plug Type Voltage Um (kV) Current Ir (A) Conductor Sizes (mm2)
Min Max
151SP 12 200 16 95
K151SP 24 200 16 95
