Technical Characteristics –
- Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
- The equipment bushings are moulded epoxy insulated parts in accordance with CENELEC EN 50180.
Specification and Design –

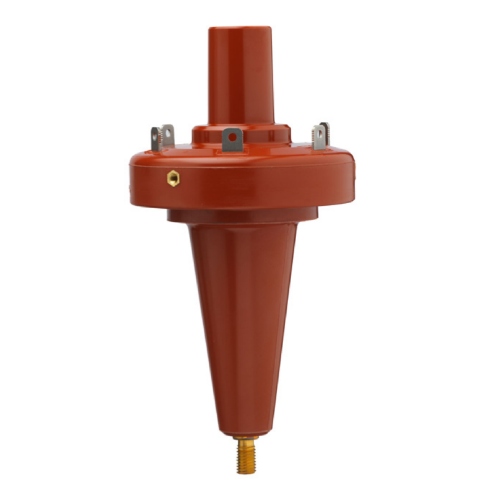

- The plug-in type equipment bushings 180AR-… meet the requirements of CENELEC EN 50180 and IEC 60137.
- The standard bushings, (K)180AR-3, are equipped with 6 tabs for the bail restraint. The (K)180AR-3-G are equipped with 4 tabs and 2 threaded inserts M6 (-G version).
- To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. K180AR-3/J.
| Equipment Bushing Type |
Voltage Um (kV) |
Current Ir (A) |
Dimensions (mm) | |
|---|---|---|---|---|
| A | B | |||
| 180AR-3 | 12 | 250 | 171 | 55 |
| K180AR-3 | 24 | 250 | 171 | 55 |
Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
