Nexans EUROMOLD 200LR Separable Elbow Connector

Interface A (for up to 24 kV, 250 A)

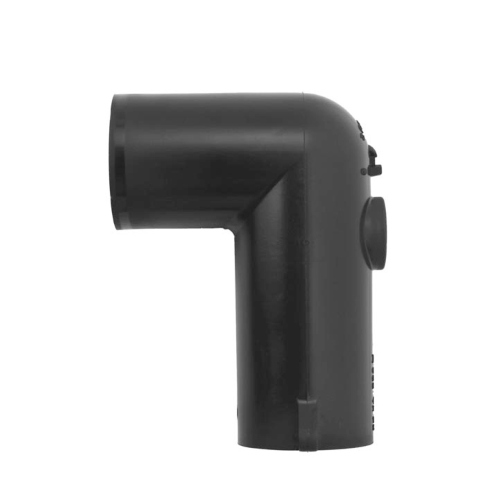

Nexans Euromold 200LR Separable Elbow Connector with 250A Current Rating is an elbow connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, etc.) with interface A bushings.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)


Specification & Standards –

  • The 200LR separable connector meets the requirements of CENELEC HD 629.1

Technical Characteristics –

  • A thick conductive EPDM jacket provides a total safe to touch screen.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

Design –

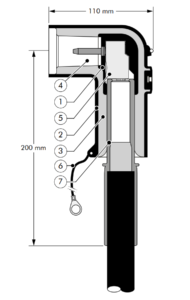

Separable connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer.
  4. Type A interface as described by CENELEC EN 50180 and 50181.
  5. Conductor contact.
  6. Earthing lead.
  7. Cable reducer.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Separable Connector Type Current Ir (A) Voltage Um (kV) Conductor Sizes (mm2) Diameter Over Insulation (mm)
Min Max Min Max
K200LR-12 250 12
17.5
25
25
95
50
13.0 21.0
K200LR-16 250 17.5
24
50
25
95
95
17.5 25.0
