Nexans EUROMOLD 400A-24B – Interface C1 in-air bushing

Up to 24 kV – 630 Amps

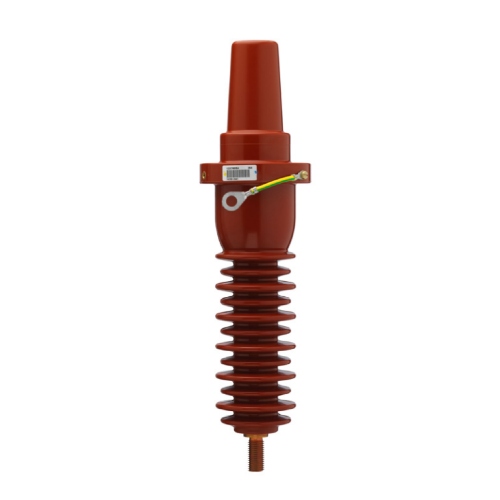

Nexans Euromold 400A-24B In-Air Bushings for use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)


Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The bolted type equipment bushings 400A-24B are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180, IEC 60071 and IEC 60137

Specification and Design –

  • To order the equipment bushing, specify the type. The bushings are supplied with an earth jumper.
  • To include the ring clamp, add:
    • /B, if per British standards
    • /D, if per German standards E.g. 400A-24B/D.
    • /F, if per French standards.
  • For use in potentially explosive atmospheres (for 12 kV max), order: -/ATEX.

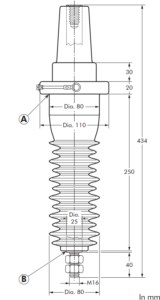

Equipment Bushing Type Voltage Um (kV) Current Ir (A) Creepage Distance A-B (mm)
400A-24B 12 630 520
400A-24B 24 630 520



Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
