Nexans EUROMOLD 400AR-3 – Interface C1 equipment bushing

Up to 36 kV – 630 Amps

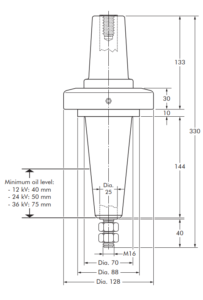

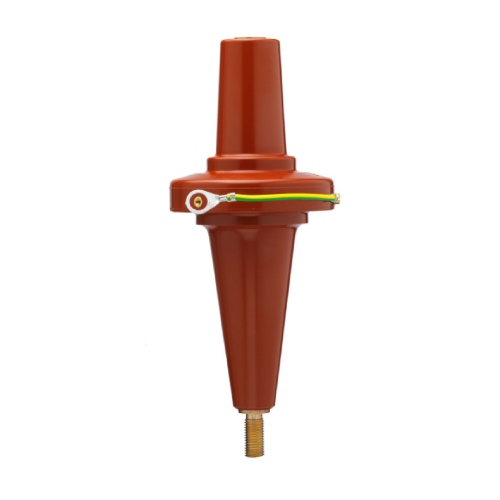

Nexans Euromold 400AR-3 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These bushings are also used as Transformer bushings.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 35/11 (12kV)
  • 7/15 (17.5kV)
  • 12/20 (24kV)
  • 7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)




Technical Characteristics –

  • Each Plug-in bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The bolted type equipment bushings 400AR-3 are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180 and IEC 60137.

Specification and Design –

  • To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J). E.g. M400AR-3/J. For use in potentially explosive atmospheres (for 12 kV max), order: 400AR-3/ATEX.

Equipment Bushing Type Voltage Um (kV) Current Ir (A)
400AR-3 12 630
K400AR-3 24 630
M400AR-3 36 630



Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
