Technical Characteristics –
- Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.

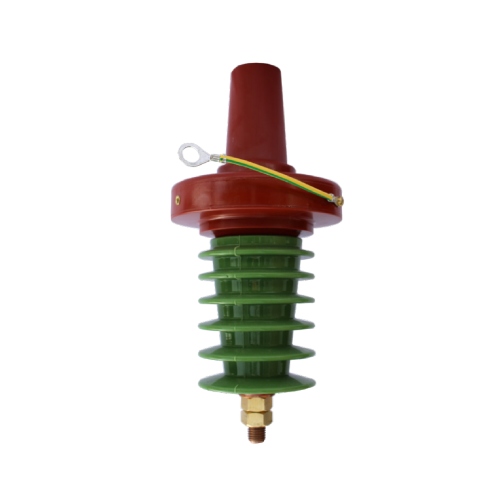

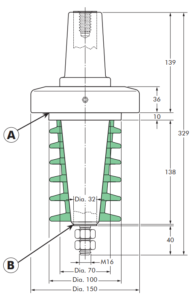

- The bolted type equipment bushings 400AR-4BC are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180.
- A non-tracking insulating rubber boot is installed over the bushing shank.
Specification and Design –
- To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. K400AR-4BC/GS. For use in potentially explosive atmospheres (for 12 kV max). Order: -/ATEX
| Equipment Bushing Type | Voltage Um (kV) | Current Ir (A) | Creepage Length A-B (mm) |
|---|---|---|---|
| 400AR-4BC | 12 | 1250 | 315 |
| K400AR-4BC | 24 | 1250 | 315 |
Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
