Specification & Standards –
- The separable connector 400LR meets the requirements of CENELEC HD 629.1.
Technical Characteristics –
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

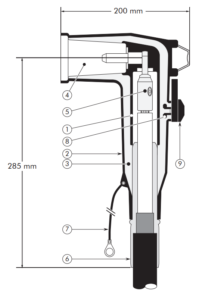

Design –
Separable connector comprising:
- Conductive EPDM insert.
- Conductive EPDM jacket.
- Insulating EPDM layer.
- Type B – interface as described by CENELEC EN 50180 and 50181.
- Conductor connector.
- Cable reducer.
- Earthing lead.
- VD point.
- Conductive rubber cap.
The screen break design enables cable outer sheath testing without removing or dismantling the connector.
| Separable connector type | Voltage Um (kV) | Current Ir (A) | Conductor sizes (mm²) | |
|---|---|---|---|---|
| min | max | |||
| 400LR/G | 12 | 400 | 25 | 240 |
| K400LR/G | 24 | 400 | 25 | 240 |
| M400LR/G | 36 | 400 | 35 | 185 |
