Nexans Euromold 484TB Separable Tee Connector

Interface C (for up to 42 kV, 630 A – 1250A )

Nexans Euromold 484TB Separable Tee Connector is designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, etc.) with interface C bushings. It can also be used to connect cable to cable when using the appropriate mating parts.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36) kV
  • 20.8/36 (42) kV


Specification & Standards –

  • The 484TB separable connector meets the requirements of CENELEC HD 629.1.

Technical Characteristics –

  • A thick conductive EPDM jacket provides a total safe to touch screen.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

Design –

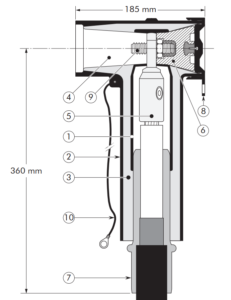

Separable connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type C interface as described by CENELEC EN 50180 and 50181.
  5. Conductor contact.
  6. Basic insulating plug (with VD point).
  7. Cable reducer.
  8. Conductive rubber cap.
  9. stud & flange nut.
  10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (mm²)
min max
48TB/G 12 1250 240 630
K48TB/G 24 1250 240 630
M48TB/G 36 1250 240 630



Separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (mm²)
min max
P48TB/G 42 1250 240 630
