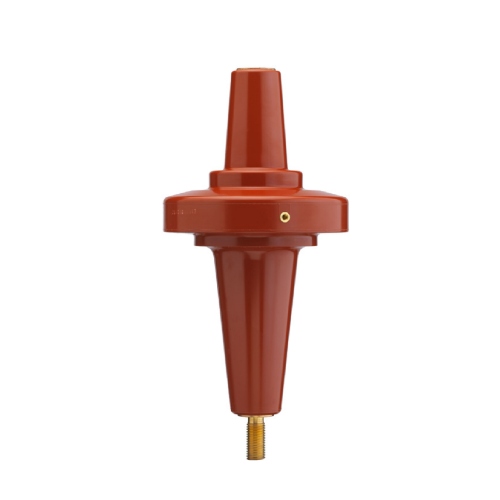

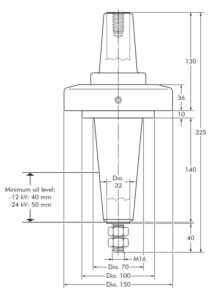

Nexans EUROMOLD 670AR-2 – Interface D2 equipment bushing

Up to 24 kV – 1250 Amps

Nexans Euromold 670AR-2/ K670AR-2 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 35/11 (12kV)
  • 7/15 (17.5kV)
  • 12/20 (24kV)
  • 7/22 (24kV)




Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The bolted type equipment bushings 670AR-2 are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180 and IEC 60137.

Specification and Design –

  • To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. K670AR-2/GS.

Equipment Bushing Type Voltage Um (kV) Current Ir (A)
670AR-2 12 1250
K670AR-2 24 1250

Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
