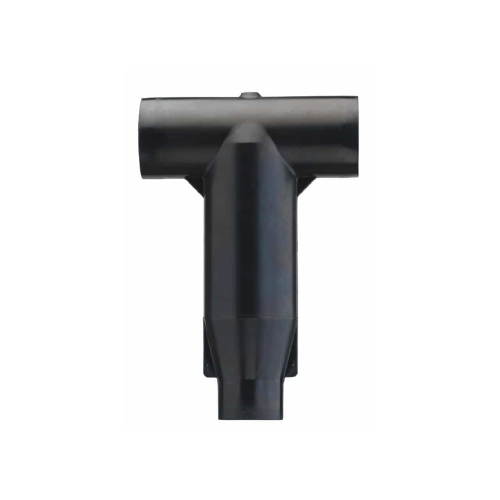

Specification & Standards –
- The 676LRA separable connector meets the requirements of CENELEC HD 629.1.
Technical Characteristics –
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design –

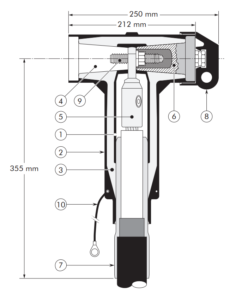

Separable connector comprising:
- Conductive EPDM insert.
- Conductive EPDM jacket.
- Insulating EPDM layer moulded between the insert and the jacket.
- Type D – 1250 A interface as described by CENELEC EN 50180 and 50181.
- Conductor contact.
- Basic insulating plug (with VD point).
- Cable reducer.
- Conductive rubber cap.
- Threaded stud.
- Earthing lead.
The screen break design enables cable outer sheath testing without removing or dismantling the connector.
Separable connector type | Voltage Um (kV) | Current Ir (A) | Conductor sizes (mm²) | |
---|---|---|---|---|
min | max | |||
676LRA/G | 12 | 1250 | 50 | 630 |
K676LRA/G | 24 | 1250 | 35 | 630 |
