Nexans EUROMOLD 750S1 – Interface E equipment bushing

Up to 36 kV – 800 Amps

Nexans Euromold 750S1 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)


Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The bolted type equipment bushings 750S1 meet the requirements of IEC 60137.

Specification and Design –

  • The equipment bushing is a moulded epoxy insulated part in accordance with ANSI/IEEE 386 std. (5/8″ threading system).

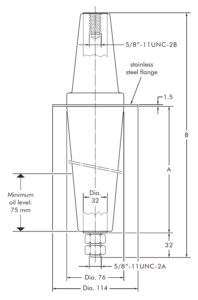

Equipment Bushing Type Voltage Um (kV) Current Ir (A) Dimensions (mm)
A B
750S1 36 800 75 235



Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
