Nexans Euromold 784TB Separable Tee Connector (Al)

Interface E (for up to 42 kV, 800A)  For use with Bushings with Aluminium Contact Rod.

Nexans Euromold 784TB Separable Tee Connector (Aluminium) is for use with bushings with Aluminium Contact Rod. It is designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, etc.) with interface E bushings. It can also be used to connect cable to cable when using the appropriate mating parts.

These are available for the following voltage classes:-
• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)
• 18/30 (36kV)
• 19/33 (36kV)
• 20.8/36 (42kV)


Specification & Standards –

  • The 784TB separable connector meets the requirements of CENELEC HD 629.1.

Technical Characteristics –

  • A thick conductive EPDM jacket provides a total safe to touch screen.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

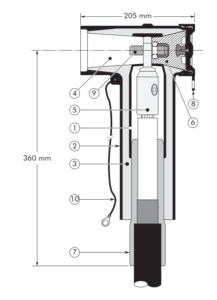

Design –

Separable connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type E 5/8″ interface as described by IEEE 386.
  5. Conductor contact.
  6. Basic insulating plug 858 BIPA (with VD point).
  7. Cable reducer.
  8. Conductive rubber cap.
  9. Stud/nut/washer 5/8″.
  10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Separable connector type Voltage Um (kV) Current Ir (A) When installed on an appropriate equipment bushing Conductor sizes (mm²)
min max
784TB/G 12 800 50 630
K784TB/G 24 800 35 630
M784TB/G 36 800 35 630
P784TB/G 42 800 35 630
