Specification & Standards –
- The 784TB separable connector meets the requirements of CENELEC HD 629.1.
Technical Characteristics –
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design –

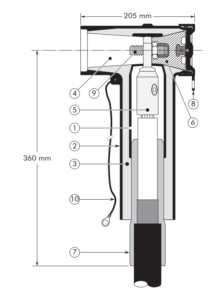

Separable connector comprising:
- Conductive EPDM insert.
- Conductive EPDM jacket.
- Insulating EPDM layer moulded between the insert and the jacket.
- Type E 5/8″ interface as described by IEEE 386.
- Conductor contact.
- Basic insulating plug 858 BIPA (with VD point).
- Cable reducer.
- Conductive rubber cap.
- Stud/nut/washer 5/8″.
- Earthing lead.
The screen break design enables cable outer sheath testing without removing or dismantling the connector.
| Separable connector type | Voltage Um (kV) | Current Ir (A) When installed on an appropriate equipment bushing |
Conductor sizes (mm²) | |
|---|---|---|---|---|
| min | max | |||
| 784TB/G | 12 | 1250 | 50 | 630 |
| K784TB/G | 24 | 1250 | 35 | 630 |
| M784TB/G | 36 | 1250 | 35 | 630 |
| P784TB/G | 42 | 1250 | 35 | 630 |
