Nexans Euromold 800PB-58 Coupling Connector

 Interface E (for up to 42 kV, 1250A)

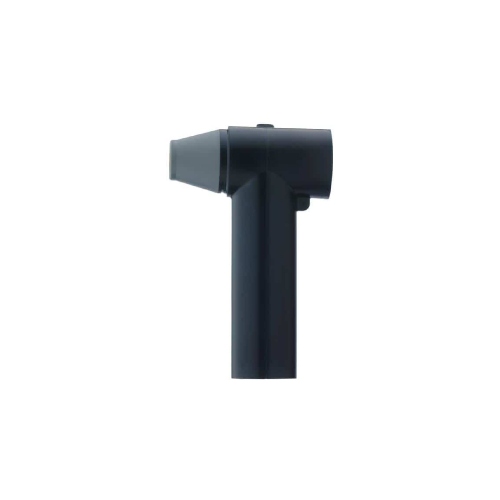

Nexans Euromold 800PB-58 Coupling Connector (bolted type) for dual cable arrangement. It has been designed to be used with 784TB separable tee connector.

These are available for the following voltage classes: –

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)
  • 20.8/36 (42kV)


Specification & Standards –

  • The 800PB-58 coupling connector meets the requirements of CENELEC HD 629.1.

Technical Characteristics –

  • A thick conductive EPDM jacket provides a total safe to touch screen.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

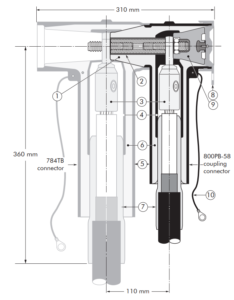

Design –

  1. Interface designed to fit 784TB connector.
  2. Contact rod type 5/8″.
  3. Conductor connector (hexagonal crimping, deep indent crimping or bolted).
  4. Conductive EPDM insert.
  5. Conductive EPDM jacket.
  6. Insulating EPDM layer moulded between the insert and the jacket.
  7. Cable reducer.
  8. Conductive EPDM cap.
  9. Basic insulating plug 858BIPA (with VD point).
  10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Separable connector type Voltage Um (kV) Current Ir (A)
When installed on an appropriate equipment bushing
Conductor sizes (mm²)
min max
800PB-58/G 12 1250 35 300
K800PB-58/G 24 1250 35 300
M800PB-58/G 36 1250 50 240
P800PB-58/G 42 1250 50 240
