Specification & Standards –

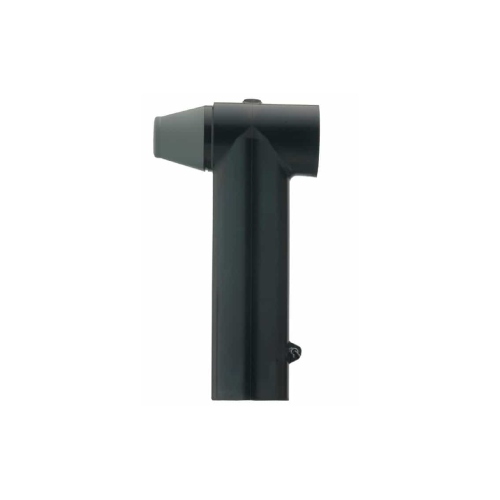

- The 804PB-58 coupling connector meets the requirements of CENELEC HD 629.1.
Technical Characteristics –
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design –

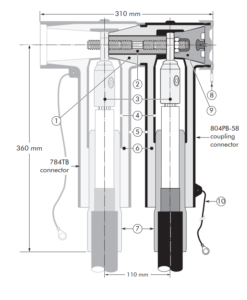

- Interface designed to fit 784TB connector.
- Contact rod type 5/8″.
- Conductor connector (hexagonal crimping, deep indent crimping or bolted).
- Conductive EPDM insert.
- Conductive EPDM jacket.
- Insulating EPDM layer moulded between the insert and the jacket.
- Cable reducer.
- Conductive EPDM cap.
- Basic insulating plug 858BIPA (with VD point).
- Earthing lead.
The screen break design enables cable outer sheath testing without removing or dismantling the connector.
| Separable connector type | Voltage Um (kV) | Current Ir (A) When installed on an appropriate equipment bushing |
Conductor sizes (mm²) | |
|---|---|---|---|---|
| min | max | |||
| 804PB-58/G | 12 | 1250 | 50 | 630 |
| K804PB-58/G | 24 | 1250 | 35 | 630 |
| M804PB-58/G | 36 | 1250 | 35 | 630 |
| P804PB-58/G | 42 | 1250 | 35 | 630 |
