Nexans Euromold 804PB Coupling Connector

Interface C (for up to 42 kV, 1250A )

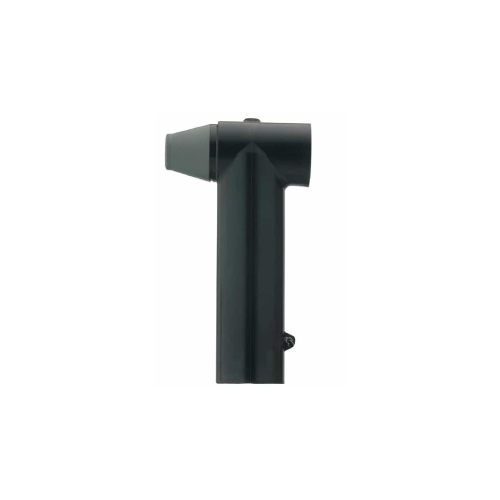

Nexans Euromold 804PB Separable Coupling Connector is for dual cable arrangement. It has been designed to be used with 480TB, 484TB and 489TB separable tee connectors. It can also be installed on any 8-series coupling connector for a multiple cable arrangement.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36) kV
  • 20.8/36 (42) kV


Specification & Standards –

  • The 804PB coupling connector meets the requirements of CENELEC HD 629.1.

Technical Characteristics –

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

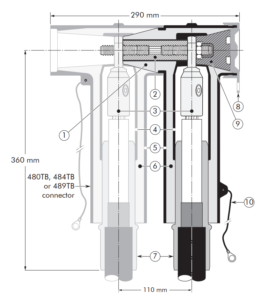

Design –

  1. Interface designed to fit 480TB, 484TB and 489TB connectors.
  2. Contact rod for 804PB.
  3. Conductor contact.
  4. Conductive EPDM insert.
  5. Conductive EPDM jacket.
  6. Insulating EPDM layer moulded between the insert and the jacket.
  7. Cable reducer.
  8. Conductive EPDM cap.
  9. Basic insulating plug (with VD point).
  10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.

Separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (mm²)
min max
804PB/G 12 1250 240 630
K804PB/G 24 1250 240 630
M804PB/G 36 1250 240 630
P804PB/G 42 1250 240 630
