Nexans EUROMOLD 900AR-2 – Interface F2 equipment bushing

Up to 42 kV – 630 Amps

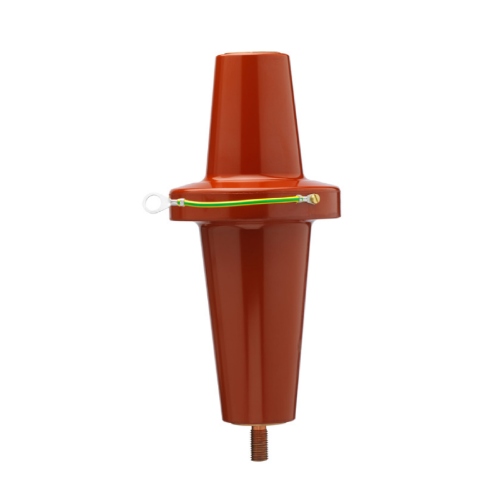

Nexans Euromold 900AR-2 Equipment Bushings are MV-HV Bushings for use in equipment typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/22 (36kV)
  • 20.8/36 (42kV)


Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The bolted type equipment bushings 900AR-X are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180 and IEC 60137.

Specification and Design –

  • To order the equipment bushing, specify the type. Add a ‘K’ for use up to 24 kV, add an ‘M’ for use up to 36 kV, add a ‘P’ for use up to 42 kV. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. 900AR-2/GS

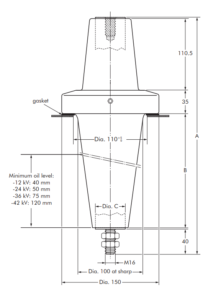

Equipment Bushing Type Voltage Um (kV) Current Ir (A) Dimensions
A B Dia.C
K900AR-2 24 630 364 175 25
M900AR-2 36 630 364 175 25
P900AR-2 42 630 364 175 25



Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
