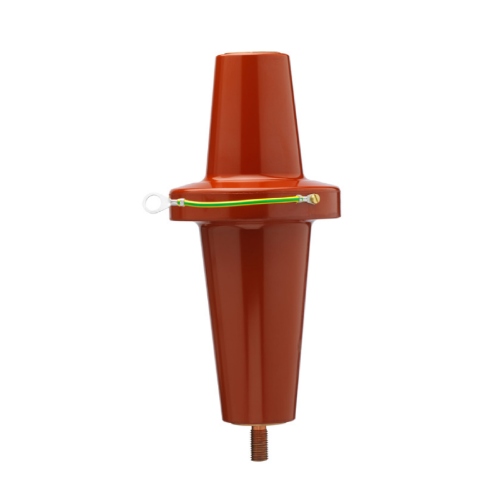

Nexans EUROMOLD 900AR-3 – Interface F1 equipment bushing

Up to 36 kV – 2500 Amps

Nexans Euromold 900AR-3 Equipment Bushings are MV-HV Bushings for use in equipment typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/22 (36kV)




Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The bolted type equipment bushings 900AR-X are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180 and IEC 60137.

Specification and Design –

  • To order the equipment bushing, specify the type. Add a ‘K’ for use up to 24 kV, add an ‘M’ for use up to 36 kV, add a ‘P’ for use up to 42 kV. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. 900AR-3/GS

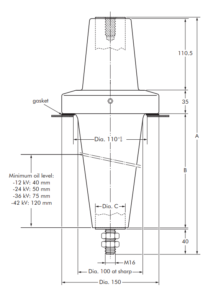

Equipment Bushing Type Voltage Um (kV) Current Ir (A) Dimensions
A B Dia.C
K900AR-3 24 2500 364 175 50
M900AR-3 36 2500 364 175 50



Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
