Technical Characteristics –
- Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
- The bolted type equipment bushings 900AR-X are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180 and IEC 60137.
Specification and Design –
- To order the equipment bushing, specify the type. Add a ‘K’ for use up to 24 kV, add an ‘M’ for use up to 36 kV, add a ‘P’ for use up to 42 kV. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. 900AR-7/GS.

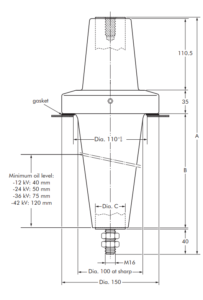

| Equipment Bushing Type | Voltage Um (kV) | Current Ir (A) | Dimensions | ||
|---|---|---|---|---|---|
| A | B | Dia.C | |||
| K900AR-7 | 24 | 630 | 259 | 70 | 25 |
| M900AR-7 | 36 | 630 | 259 | 70 | 25 |
| P900AR-7 | 42 | 630 | 259 | 70 | 25 |
Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
