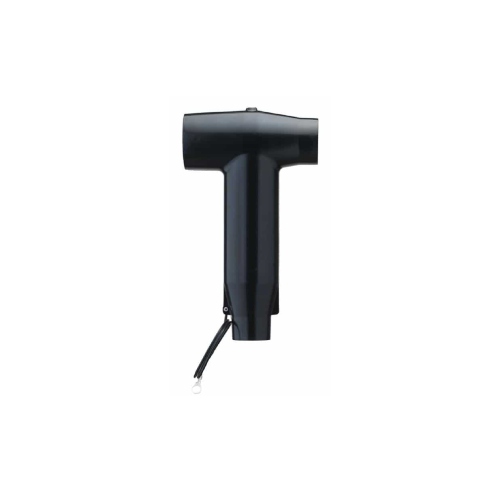

Nexans Euromold 944TB Separable Tee Connector

Interface F (for up to 42 kV, 2500A)

Nexans Euromold 944TB Separable Tee Connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, etc.). It is also used to connect cable to cable when using the appropriate mating parts.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)
  • 20.8/36 (42kV)


Specification & Standards –

  • The 944TB/G separable connector meets the test requirements of CENELEC HD 629.1.

Technical Characteristics –

  • A thick conductive EPDM jacket provides a total safe to touch screen.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

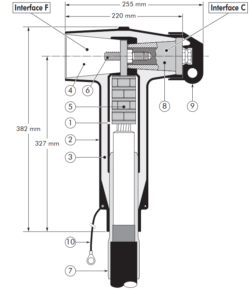

Design –

Separable connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type F interface as described by CENELEC EN 50180 and 50181.
  5. Conductor connector.
  6. Clamping screw.
  7. Cable reducer.
  8. Basic insulating plug (with VD point), type C interface as described by CENELEC EN 50180 and 50181.
  9. Conductive rubber cap.
  10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.
