Nexans Euromold Three Core Heat-Shrink Breakout Kit

Nexans Euromold T-HSBK Three Core Heat-Shrink Breakout Kit used for sealing 3-core polymeric insulated cable crutches and earthing of the metallic screens and armour. It is ideal for use with Euromold separable connectors with ground lead (/G) or with terminations.


Technical Characteristics –

The installed breakout fullfills the requirements of IP54. The armouring and screen connection systems have short circuit rating (Isc) of up to 5,1 kA for 1s.

Design –

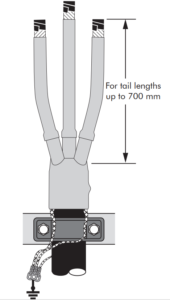

The three core heat-shrink breakout kit consists of (depending on cable type): a heat-shrinkable breakout, 3 sleeves of 500 mm, earth braid and roll springs, hose clamp, water sealing mastic and installation instructions.
