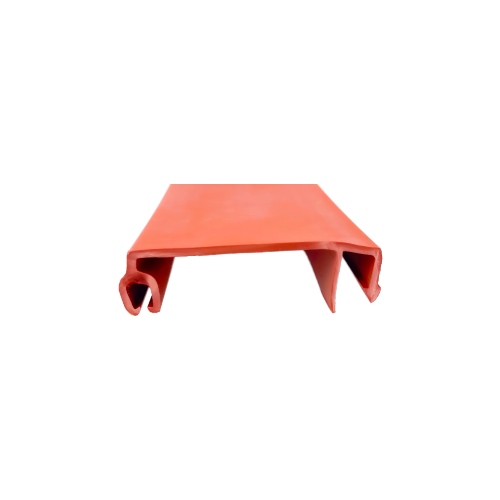

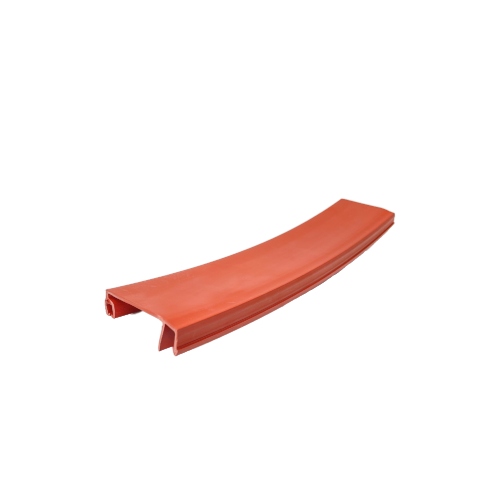

Overhead Line Cover

PCA Technologies’ Overhead Line Cover provides insulation to bare conductors to help prevent electrical outages caused by trees or wildlife coming into accidental contact with bare overhead sub-transmission and distribution lines. Outages may also occur in windy conditions with lines clashing with each other or in power lines close to steel structures. Existing bare conductors can be insulated without costly conductor replacement expenditures.

Categories: ,

Enquiry about Overhead Line Cover

Features:-

  • For up to 36 kV
  • Wide application range
  • In-built mastic sealing
  • in-built creepage extender
  • Anti-tracking
  • UV resistant

The installation process for this overhead line cover is quick and easy. A specialised installation tool, that ensures a fast and reliable application of the overhead line cover, is also available in PCA’s product range.

Code AAAC/ACSR Conductor size Standard Length Net wt. Grams/m
POLC-36kV-14 Up to 100 mm² 20m roll 290
POLC-36kV-18 Up to 200 mm² 20m roll 374
POLC-36kV-31 Up to 450 mm² 20m roll 445
POLC-36kV-38 Up to 800 mm² 20m roll 495
