Support Rings

Support Rings

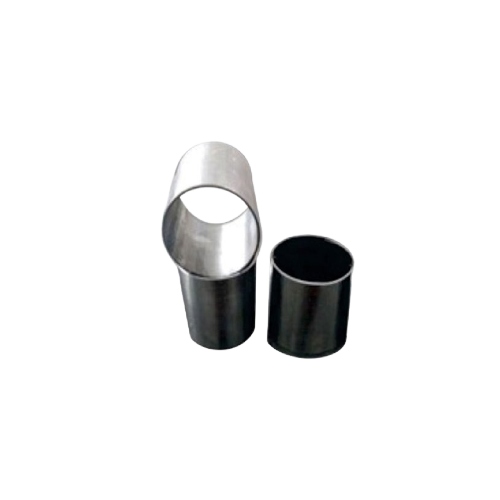

The support ring safeguards the insulation core by securely fastening the cable wire armor to the steel case. This not only enhances the structural integrity of the entire assembly but also ensures the longevity and reliability of the insulation, shielding it from external factors that may compromise its performance.

Typical Application: LV and MV Cables Joints.

Categories: , , Tag:

Support Rings Technical Drawing

Code D (mm)±0.5 mm L
(mm)±2 mm		 T(mm)±0.1mm
PSRGI-PS-002-19-24 19 24 1.5
PSRGI-PS-002-22-30 22 30 1.5
PSRGI-PS-002-26-30 26 30 1.5
PS-002 PSRGI-32-30 32 30 1.5
PSRGI-PS-002-32-40 32 40 1.5
PSRGI-PS-002-37-40 37 40 1.5
PSRGI-PS-002-42-40 42 40 1.5
PSRGI-PS-002-47-40 47 40 1.5
PSRGI-PS-002-49-60 49 60 1.5
PSRGI-PS-002-54-50 54 50 1.5
PSRGI-PS-002-54-60 54 60 1.5
PSRGI-PS-002-57-60 57 60 1.5
PSRGI-PS-002-58-50 58 50 1.5
PSRGI-PS-002-62-60 62 60 1.5
PSRGI-PS-002-66-50 66 50 1.5
PSRGI-PS-002-67-70 67 70 1.5
PSRGI-PS-002-71-50 71 50 1.5
PSRGI-PS-002-73-70 73 70 1.5
PSRGI-PS-002-77-50 77 50 1.5
PSRGI-PS-002-77-70 77 70 1.5
PSRGI-PS-002-85-50 85 50 1.5
PSRGI-PS-002-86-70 86 70 1.5
PSRGI-PS-002-92-50 92 50 1.5
PSRGI-PS-002-97-50 97 50 1.5
PSRGI-PS-002-97-80 97 80 1.5
PSRGI-PS-002-100-50 100 50 1.5
PSRGI-PS-002-105-50 105 50 1.5
PSRGI-PS-002-105-80 105 80 2
