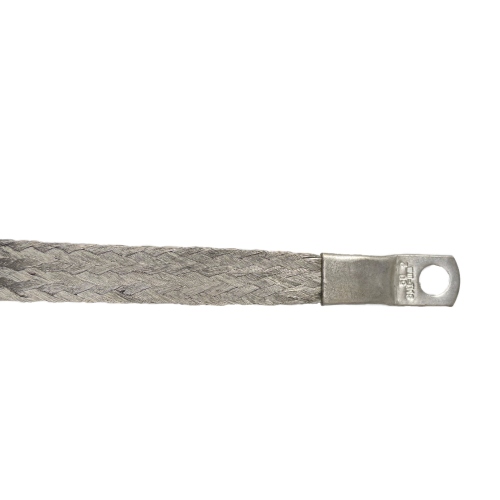

Copper Braid with Lug

This copper braid with lug serves a crucial role as the grounding lead in joints and terminations, ensuring effective electrical conductivity and safety. Crafted from high-quality tinned copper wires, this essential component exhibits superior performance in diverse applications. Specifically designed for Low Voltage (LV) and Medium Voltage (MV) cable joints and terminations, the tinned copper braid guarantees reliable electrical connections, minimizing resistance and enhancing overall system integrity. Its robust construction and conductivity make it an indispensable choice for ensuring the secure and efficient functioning of electrical networks, contributing to the seamless transmission of power across various settings. This copper braid with lug is ideal for indoor applications.


code Min. Cross-Section
(mm2)
L(mm)±10 mm B(mm)±10% Lug(mm2)
PCBL-PS-029-10-500 10 500 14 25
PCBL-PS-029-16-300 16 300 20 50
PCBL-PS-029-16-400 16 400 20 50
PCBL-PS-029-16-500 16 500 20 50
PCBL-PS-029-16-1500 16 1500 20 50
PCBL-PS-029-25-300 25 300 22 70
PCBL-PS-029-25-500 25 500 22 70
PCBL-PS-029-25-750 25 750 22 70
PCBL-PS-029-25-1500 25 1500 22 70
PCBL-PS-029-35-300 35 300 25 70
PCBL-PS-029-35-500 35 500 25 70
PCBL-PS-029-35-750 35 750 25 70
PCBL-PS-029-35-1000 35 1000 25 70
PCBL-PS-029-50-500 50 500 33 95
PCBL-PS-029-50-1000 50 1000 33 95
PCBL-PS-029-70-500 70 500 40 120
PCBL-PS-029-70-1000 70 1000 40 120
PCBL-PS-029-70-1500 70 1500 40 120
PCBL-PS-029-120-500 120 500 60 150

Customised sizes available as per the requirements of customer.
