Heat Shrink 2 Core LV Breakout

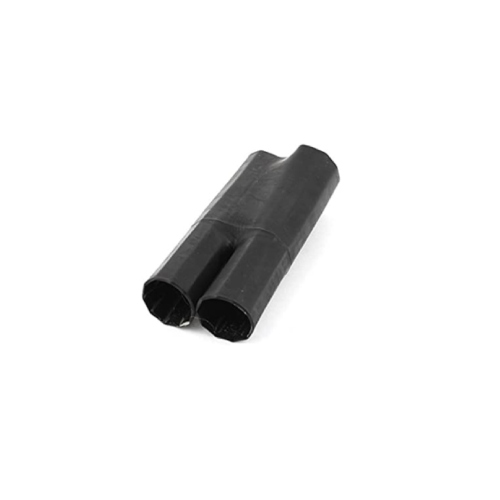

The PHSSC-2-LV Heat Shrink Spreader Cap, commonly known as a Breakout, delivers strong and permanent environmental sealing for the crutch of 2-core PVC/XLPE and PILC cables up to 3.3 kV. Crafted from premium cross-linked Polyolefin material, these breakouts ensure exceptional insulation and reliability. Equipped with internally coated hot melt adhesive during the manufacturing process, they guarantee a secure and lasting seal. Additionally, these breakouts play a crucial role in safeguarding cable joints and terminations by preventing water entry into the cable, thus enhancing overall protection.

Typical Application: LV Cable Joints & Terminations

Categories: ,

Enquiry about Heat Shrink 2 Core LV Breakout

Code D D d d P P F F Tb Tf
E S E S E S E S S S
min max min max min max min max ±10% ±10%
PHSSC-2-LV-22/8-10/3 22 8 10 3 70 85 14 20 2.2 2.0
PHSSC-2-LV-28/8-12/3 28 8 12 3 70 85 15 20 2.2 2.0
PHSSC-2-LV-32/10-14/4 32 10 14 4 70 85 15 20 2.2 2.0
PHSSC-2-LV-42/11-14/4 42 11 14 4 65 85 14 20 2.2 2.0
PHSSC-2-LV-60/20-24/7 60 20 24 7 95 120 25 34 3.0 2.5
PHSSC-2-LV-70/30-30/8 70 30 30 8 95 120 25 34 3.0 2.5
PHSSC-2-LV-110/65-45/15 110 65 45 15 100 138 40 58 2.2 2.0
PHSSC-2-LV-156/65-50/15 156 65 50 15 100 138 40 58 2.2 2.0
PHSSC-2-LV-170/75-35/20 170 75 35 20 145 205 45 80 3.1 2.9
PHSSC-2-LV-235/78-65/22 235 78 65 22 140 205 45 80 3.1 2.9
PHSSC-2-LV-235/135-60/24 235 135 60 24 200 250 60 83 2.8 2.5
PHSSC-2-LV-250/175-85/55 250 175 85 55 160 200 55 66 3.5 3.5
PHSSC-2-LV-355/180-155/60 355 180 155 60 150 200 50 66 3.5 3.5



All dimensions are in mm       E = Expanded/Supplied       S = Recdovere
