Heat Shrink 4 Core LV Breakout

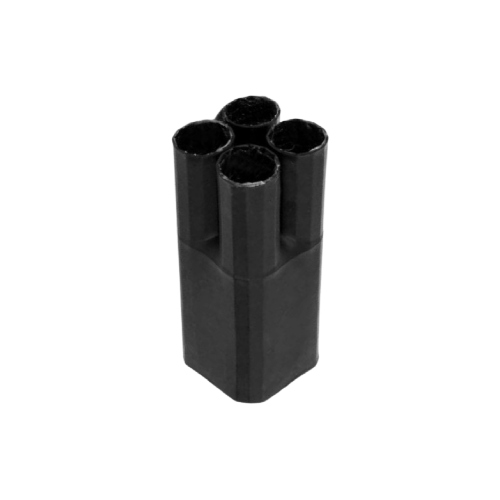

The PHSSC-4-LV Heat Shrink Spreader Cap, commonly known as a Breakout, delivers strong and permanent environmental sealing for the crutch of 4-core PVC/XLPE and PILC cables up to 3.3 kV. Crafted from high-quality cross-linked Polyolefin material, these breakouts offer exceptional insulation and reliability. Supplied from the factory with internally coated hot melt adhesive, they ensure a strong and permanent seal.

Typical Application: LV Cable Joints & Terminations


Beyond their primary function, these breakouts play a crucial role in protecting cable joints and terminations by preventing water entry into the cable.



Code D d P F Tb Tf
E S E S E S E S S S
min max min max min max min max ±10% ±10%
PHSSC-4-LV-80/31-32/10 80 31 32 10 150 190 28 47 3.7 2.6
PHSSC-4-LV-90/42-35/13 90 42 35 13 170 210 35 52 3.7 2.6
PHSSC-4-LV-125/44-40/14 125 44 40 14 170 208 30 51 3.7 2.6
PHSSC-4-LV-180/80-70/40 180 80 70 40 200 260 75 95 3.7 2.8



All dimensions are in mm       E = Expanded/Supplied       S = Recovered
