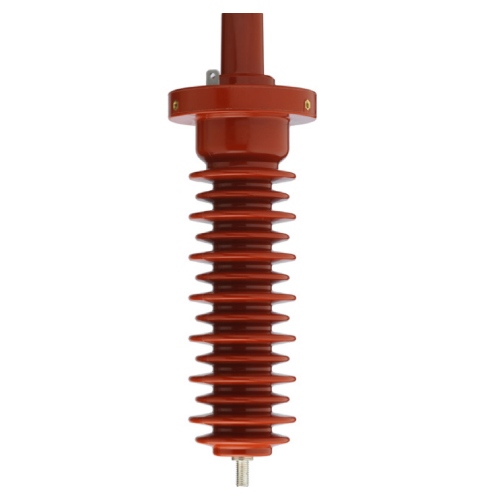

Nexans EUROMOLD 180A-24P-O – Interface A1 in-air bushing

Up to 24 kV – 250 Amps

Nexans Euromold 180A-24P-O In-Air Bushings for use in equipment insulated with air, typically for dry type transformers, motors, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)


Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The plug-in type equipment bushings 180A-24P-O are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50181, IEC 60071 and IEC 60137.

Specification and Design –

  • To order the equipment bushing, specify the type. The bushings are supplied with an earth jumper.
  • To include the ring clamp, add:
    • /B, if per British standards
    • /D, if per German standards
    • /F, if per French standards. E.g. 180A-24P-O/F.



Equipment Bushing Type Voltage Um (kV) Current Ir (A) Creepage Distance A-B (mm)
180A-24P-O 12 250 630
180A-24P-O 24 250 630

Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
