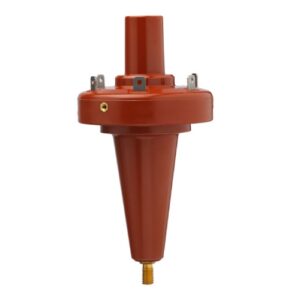

Nexans EUROMOLD 180AR-1 – Interface A1 equipment bushing

Up to 24 kV – 250 Amps

Nexans Euromold 180AR-1 & K180AR-1 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)


Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The equipment bushings are moulded epoxy insulated parts in accordance with CENELEC EN 50180.

Specification and Design –

  • The plug-in type equipment bushings 180AR-… meet the requirements of CENELEC EN 50180 and IEC 60137.
  • The standard bushings, (K)180AR-1, are equipped with 6 tabs for the bail restraint. The (K)180AR-1-G are equipped with 4 tabs and 2 threaded inserts M6 (-G version).
  • To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. K180AR-1/J.

Equipment Bushing
Type
Voltage Um
(kV)
Current Ir
(A)
Dimensions(mm)
A B
180AR-1 12 250 222 106
K180AR-1 24 250 222 106

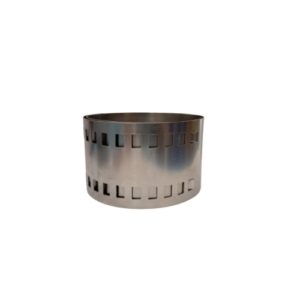

Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
