Nexans EUROMOLD 180AR-2 – Interface A1 equipment bushing

Up to 24 kV – 250 Amps

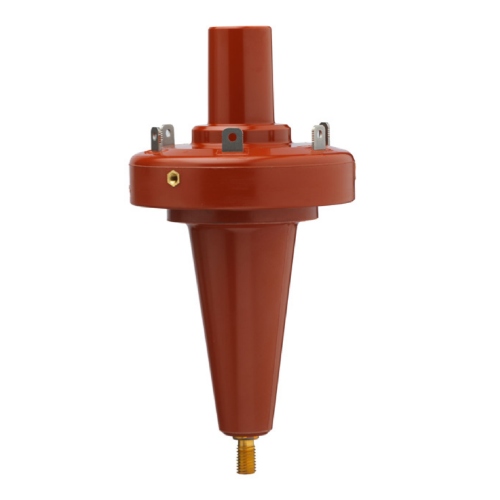

Nexans Euromold 180AR-2 & K180AR-2 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.
These are available for the following voltage classes:-
• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)


Technical Characteristics –
• Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
• The equipment bushings are moulded epoxy insulated parts in accordance with CENELEC EN 50180.
Specification and Design –
• The plug-in type equipment bushings 180AR-… meet the requirements of CENELEC EN 50180 and IEC 60137.
• The standard bushings, (K)180AR-2, are equipped with 6 tabs for the bail restraint.
• To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. K180AR-2/J.

Equipment Bushing Type Voltage Um (kV) Current Ir (A) Dimensions (mm)
A B
180AR-2 12 250 284 168
K180AR-2 24 250 284 168

Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
