Nexans EUROMOLD 400AR-2 – Interface B2 equipment bushing

Up to 36 kV – 400 Amps

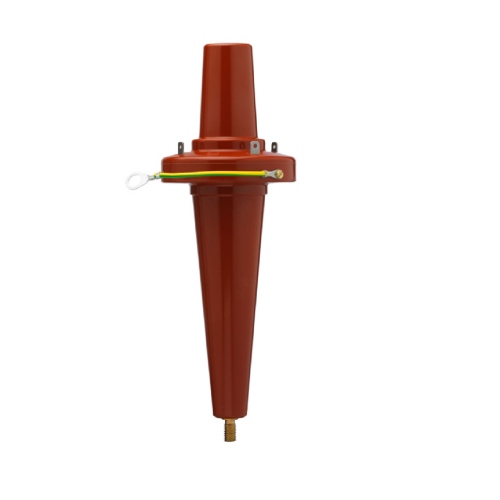

Nexans Euromold 400AR-2/ K400AR-2/ M400AR-2 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 35/11 (12kV)
  • 7/15 (17.5kV)
  • 12/20 (24kV)
  • 7/22 (24kV)
  • 18/30 (36kV)


Technical Characteristics –

  • Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
  • The plug-in type equipment bushings are moulded epoxy insulated parts and meet the requirements of IEC 60137.

Specification and Design –

To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering (e.g. K400AR-2/J).

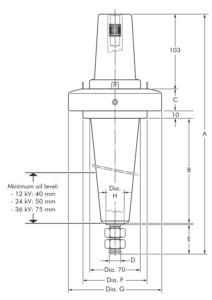

Equipment Bushing Type Voltage Um (kV) Current Ir (A) Dimensions (mm)
A B C D E Dia. F Dia. G Dia. H
400AR-2 12 400 329 138 36 M16 40 100 150 30
K400AR-2 24 400 329 138 36 M16 40 100 150 30
M400AR-2 36 400 329 138 36 M16 40 100 150 30

Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
