Technical Characteristics –
- Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.

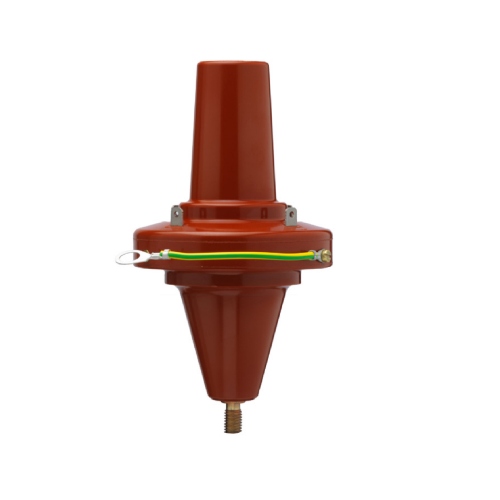

- The plug-in type equipment bushings 400AR-8 are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180.
Specification and Design –
- To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J). E.g. M400AR-8/J
| Equipment Bushing Type | Voltage Um (kV) | Current Ir (A) |
|---|---|---|
| 400AR-8 | 12 | 250 |
| K400AR-8 | 24 | 250 |
| M400AR-8 | 36 | 250 |
Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
