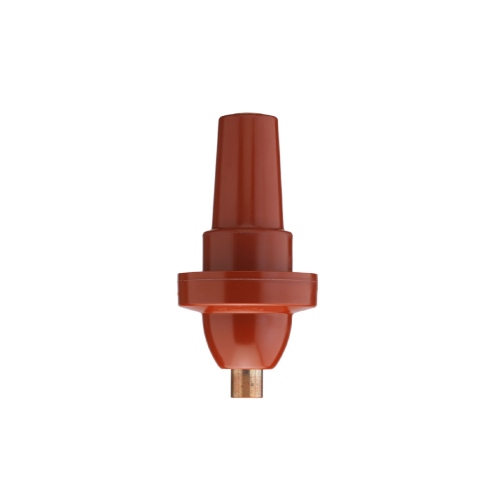

Nexans EUROMOLD 400SFR-P – Interface B2 equipment bushing

 Up to 24 kV – 400 Amps

Nexans Euromold 400AR-8/ K400AR-8/ M400AR-8 Equipment Bushings are MV-HV Bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables.

These are available for the following voltage classes:-

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)


Technical Characteristics –

• Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
• The plug-in type equipment bushing 400SFR-P meets the requirements of CENELEC EN 50180 and IEC 60137.

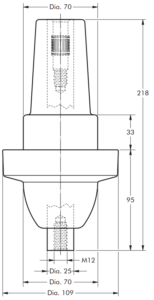

Specification and Design –

The equipment bushing is a moulded epoxy insulated part with a connector interface in accordance with CENELEC EN 50181. Additionally, the 400SFR-P bushing has a shank outside this standard, adapted for use in SF6 gas.



Equipment Bushing Type Voltage Um (kV) Current Ir (A)
400SFR-P 12 400
K400SFR-P 24 400



Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
